Description
Product details

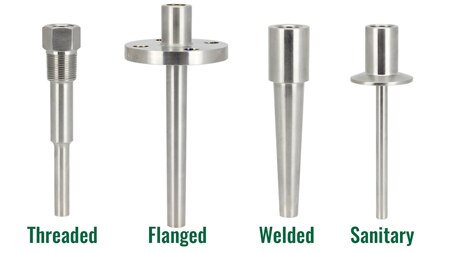

We Offer Bar stock ThermowellsUpto 2 Mtr. Hydro Test Upto 1000 Kgs. Specialist for Exotic Material Type of Thermowells A] Barstock (Machined from Solid Round/ Hex bar and drilled) B] Built up (Constructed from Pipe closed as one end) Both the above are as Screwed Thermowells Flanged Thermowells. C] Weld In Wells. Materials MS / Copper / SS304 / SS316 / SS321 / SS316L / 304L/Inconel600 / Incoloy800 /Monel / Hastalloy / Titanium /Tantalum / Nickle / Silver / Others. Type Straight / Step Tapered / Full Tapered. ID / OD As per Customer Specifications Inst. Connection ¼” / ½” / 3/8” / ¾” / 1” BSP/NPT (F) or Male MM threads M22 / M33 with different pitches or as per customer specification. Process Screwed ¼” / ½” / 3/8”/ ¾” / 1” Connection BSP/NPT(M)MM threads M22 / M33 with 1mm or 1.5 mm pitch. Flanged ¾”/1”/½”/2”/3”ASA150 /300 /600 /900 /1500# Flanges, DIN/ BS Flanges of different materials like SS304/ SS316/ INCONEL etc. Weld-on Connection Triclover Sanitary Connections Length As per Customers specification , Bar stock wells upto 2mtr length (with ID 12mm above 1 mtr) Specials Thermowell with Multibores Thermowell with different coating / Material like Silicon Carbide Ceramic,Teflon,Nickel/ Titanium /Hastalloy,Glass Lined Sleeved wells with Monel/Hastalloy/Nickel/Titanium/Tantalum Sleeves (Straight wells only)
